Alloy Steel Work Spindle Hardened & Ground-Diameter
65
80
100
110
125
150
Morse Taper Number
4
5
6
6
6
Metric 80
Max. Longitudinal Movement of Working Spindle
410
510
510
510
600
800
Number of Spindle Speeds
9
9
9
9
9
9
Range of Spindle Speeds - R.P.M.
20 to 300
20 to 300
15 to 250
15 to 250
15 to 250
15 to 250
Longitudinal Work Spindle Feeds (Nos.)
9
9
9
9
9
9
Max. Height of the Spindle Axis from Table Surface
800
925
1000
1100
1250
1500
Min. Height of the Spindle Axis from Table Surface
20
25
35
35
35
50
Dimensions of the Rotary Table
880x1050
900x1125
1030x1375
1100x1450
1225x1675
1500x2000
Longitudinal Table Traverse
1500
1625
1775
1925
2050
2225
Long. Table Traverse Feeds ( Including one Rapid)
10
10
10
10
15
15
Transversal Table Travel Feeds (Including one Rapid)
10
10
10
10
15
15
Vertical Head Stock Travel Feeds (Including one Rapid)
4
4
4
4
15
15
Rotary Table Automatic Feeds ( Including one Rapid)
10
10
10
10
15
15
Max. Cross Movement of the Table
910
1000
1100
1300
1550
2000
Max. Distance Between Stay Bearing and Facing Head
2150
2400
2690
2800
2950
3400
Facing Head Diameter
450
505
555
600
650
700
Weight Approximate in Kgs.without Packing
7500
8500
10000
11500
16500
20000

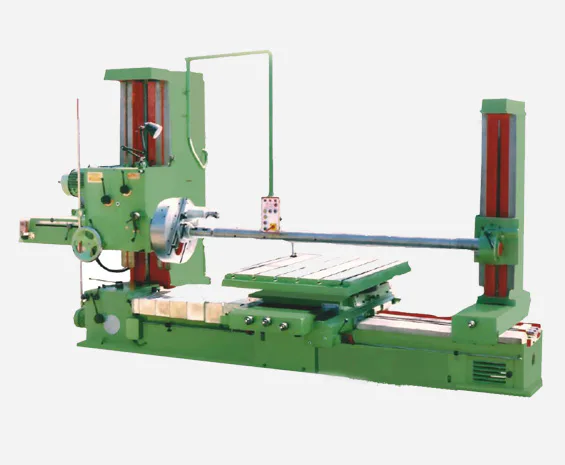

The Best Horizontal Boring Machine Exporter Of India
Basic Features
The entire Casting of machine is a mixture of 25% Steel & Ferro Chrome etc. for achieving proper Brinell Hardness, which is seasoned for at least six months..
Having Grade-1 Limits of accuracy.
High Accuracy of machining due to precision scrapped/ground Guideways of Bed & Pillars etc.
An accuracy of .005 mm resolution is measured, using
Fine Positioning of Dial Indicators & Verniers
Fine Positioning by Dial Indicators & Verniers or Digital Read-Out System having an accuracy of .005 mm resolution for close manufacturing tolerances.
Geometrical Accuracy of the machine conforms to Dr. SCHLESINGER’S ACCEPTANCE TEST CHART
Massive ribbed box type bed to bear the Heavy Loads, & Sturdy box type Columns to withstand the heavy cutting force even at elevated height
Having precise synchronized vertical travel of head stock and boring stay support
Automatic Feeds and Rapid Travels are provided for all traverses of X, Y & Z Axis of the machine and for circular movement of Work Table.
For ensuring smooth and silent running, all gears are precision cut on imported Mother Machinery.
A lever attached to feed gear box is adjusted with Manual Boring Head Height setting.
Swiveling Pendent Board is managed centrally.
Hand operated wheel attached to feed gear box motor for the safest engagement of feeds, and Hand Operated knurled Knob attached to head stock drive motor for speeds.
Threading, Milling, and Taper Boring Attachments are the special attachments, which perform multiple operations on a single machine.
An accurate adjustable stopper sets 4×90° position of Rotary Table
Finds applications in
Automobile industry
Engineering industry
Steel industry
Electrical industry
STANDARD EQUIPMENTS : Two Electric Motors :- 3 H.P.& 2 H.P. for 65mm H.B.M., 5 H.P. & 2 H.P. for 80mm H.B.M., 7.5 H.P. & 2 H.P. for 100mm H.B.M., 10 H.P. & 3 H.P. for 110mm H.B.M., 12.5 H.P. & 5 H.P. for 125mm H.B.M. & for 150mm H.B.M. 15 H.P. & 5 H.P. Electric Motors complete with Panel Board & Pendant Control Board. One Facing Head with Single Point Tool Holder, 2 Nos. Lubrication Pumps, 5 Nos. Limit Switches, One Steel Telescopic Cover to guard the machine Bed, One Machine Lamp, One Boring Bar, One Spindle Vibration Control Guide, Co-ordinate reading arrangement with Scales & Verniers for X,Y and Z Axis along with Crank Handles are also supplied as Standard Equipments with every machine.
EXTRA EQUIPMENTS : 2Axis or 3Axis Digital Read-out System for the Pin-Point Accuracy, Angular D.R.O. System for the perfect indexing of Rotary Work Table, TURCITE coating for the anti-friction movements of all major sliding parts of the machine, Vertical or Universal Milling Attachment, Taper Boring Attachment, Threading Attachment complete with special Threading Chuck, Revolving Centre with 6”/ 8” True Chuck, Three Nos. Dial Indicators in dust proof Aluminium housings with attachments & Electric Coolant Pump etc. can be supplied as EXTRA EQUIPMENTS at their Net Extra Costs
